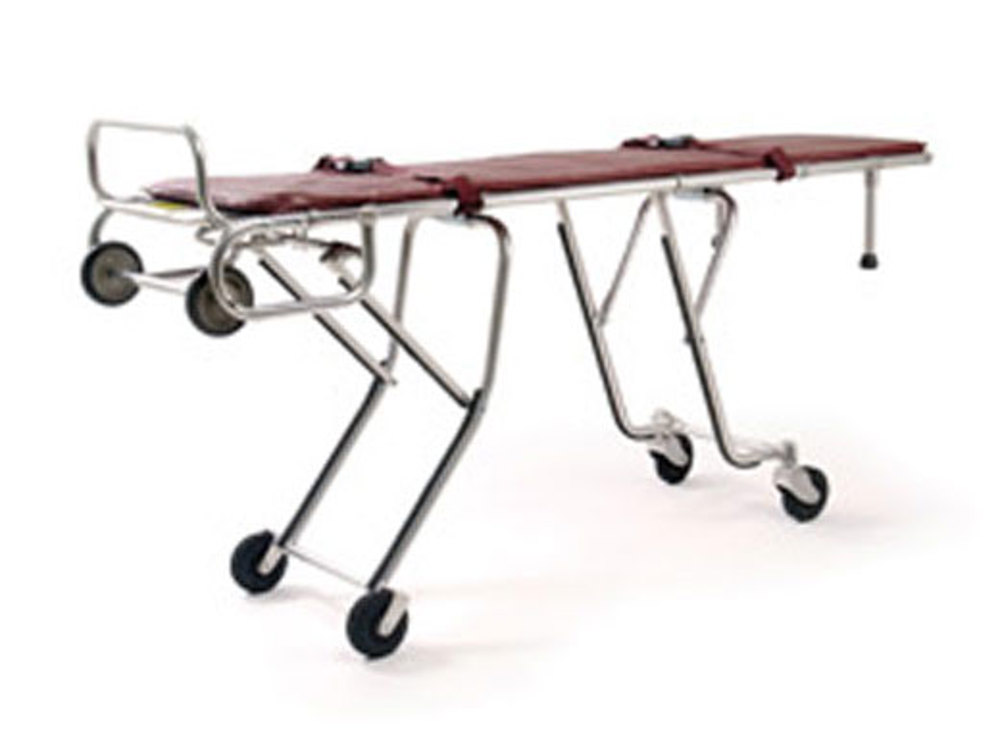

Product Name: Model 24 Multi-Level Cot
Ferno Product Code: FWM24
The Model 24 Multi-Level, Roll-In Style Cot allows one person to perfect retrieval.

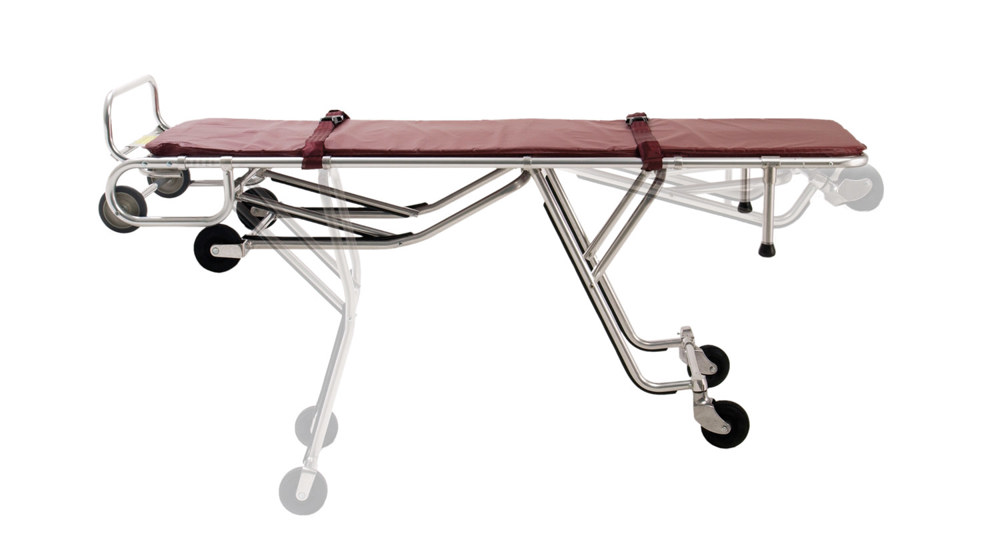

Special release levers make it possible to raise and lower the cot without assuming the full weight of the cot and body. The loading-end legs on the Model 24 unfold and lock automatically when unloading the cot.
In confined areas, the Model 24 acts as a highly maneuverable, two-wheeled stretcher when the undercarriage is folded and locked. It slides down stairs in this position with built-in stair guides. The multi-level feature allows the body to be moved easily from bed to cot. The cot also allows a portable stretcher to lie evenly in place.
The Model 24-H includes all the great features of the Model 24 and is specially designed for high-floor vehicles.
Specifications:
Length |
196 cm |
77" |
Width |
52 cm |
20.5" |
Height Max |
82 cm |
32.25" |
Height Min |
24 cm |
9.25" |
Weight |
24.5 kg |
54 lb |
Load Limit |
182 kg |
400 lb |
Specifications |
Model 24 |
Model 24-H |
---|---|---|
Length |
193 cm |
193 cm |
Width | 53 cm | 53 cm |
Height (max) | 82 cm | 84 cm |
Height (min) | 24 cm | 24 cm |
Weight | 24.5 kg | 24.5 kg |
Load Limit | 181 kg | 181 kg |
Load Height | 61 cm | 79 cm |
