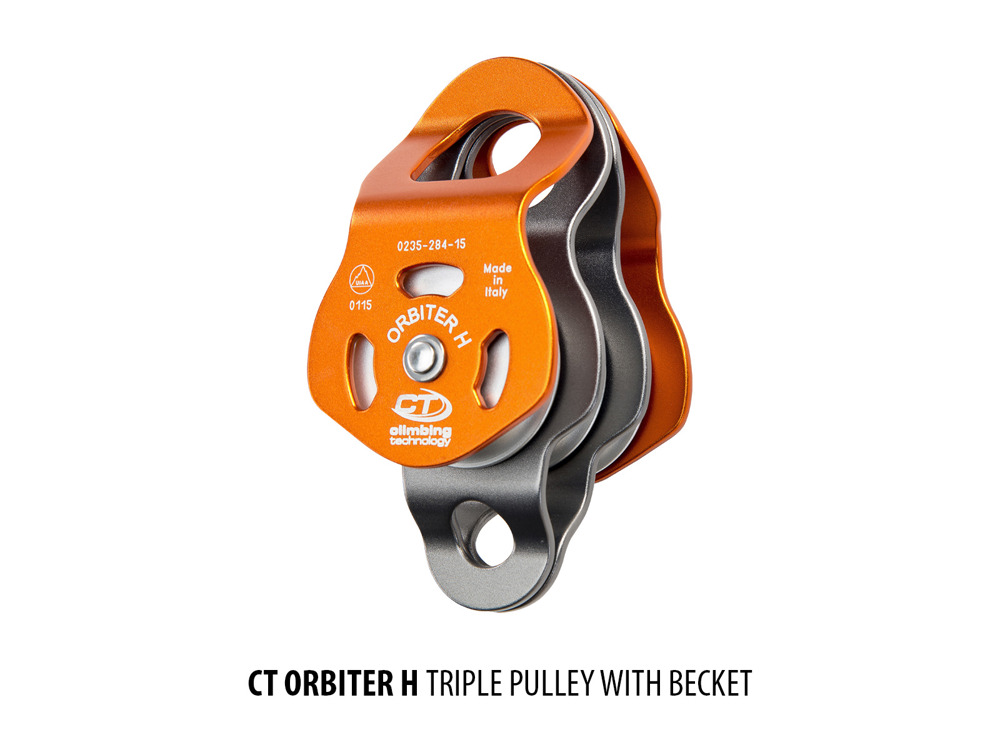

Product Name: CT Orbiter H Triple Pulley with Becket
Ferno Product Code: VCT 2P667
The CT Orbiter H is a triple pulley with mobile side plates and becket. The pulley has provision for two connectors through the upper eyelet and additional attachment point suitable for a single connector. Triple sheaves mounted on heavy duty ball bearings. Light alloy side plates extend beyond the pulley wheels to minimise rope wear.
The triple pulley is ideal for constructing 6:1 mechanical rescue systems where a lighter lifting force is required.
Specifications |
|
---|---|
Rope |
≤ 13 mm |
Length | 139 mm |
Width | 70 mm |
Depth | 78 mm |
Weight | 465 g |
MBS | 45 kN |
WLL | 12 kN |
- Approved to EN 12278:2007
