Product Name: ISC Halo Rigging Plates
Ferno Product Code: VISC RP30*
Machined from superior grade aluminium, these HALO Rigging Plate from ISC feature a central hole surrounded by six equally spaced attachment points. Each point is capable of housing multiple karabiner connections to enable numerous loading options. All holes have smooth edges to reduce abrasion on rope and hardware.
Available in three sizes.
Product Code |
Halo Size |
Colour |
---|---|---|

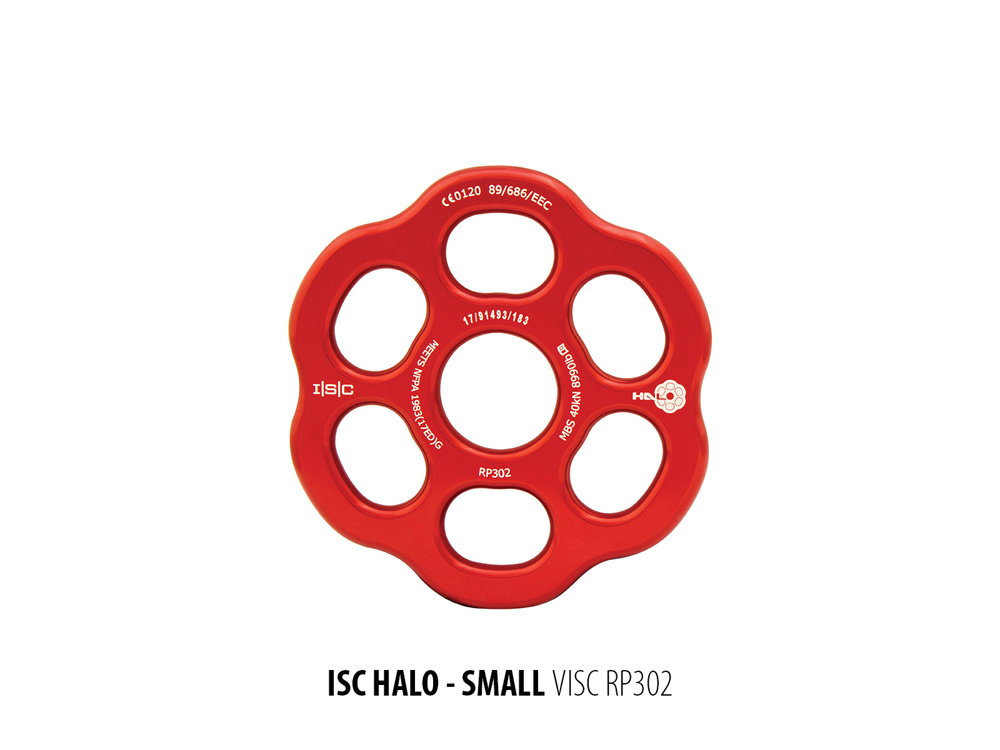

VISC RP302 |
Small - 115mm dia. |
Red |

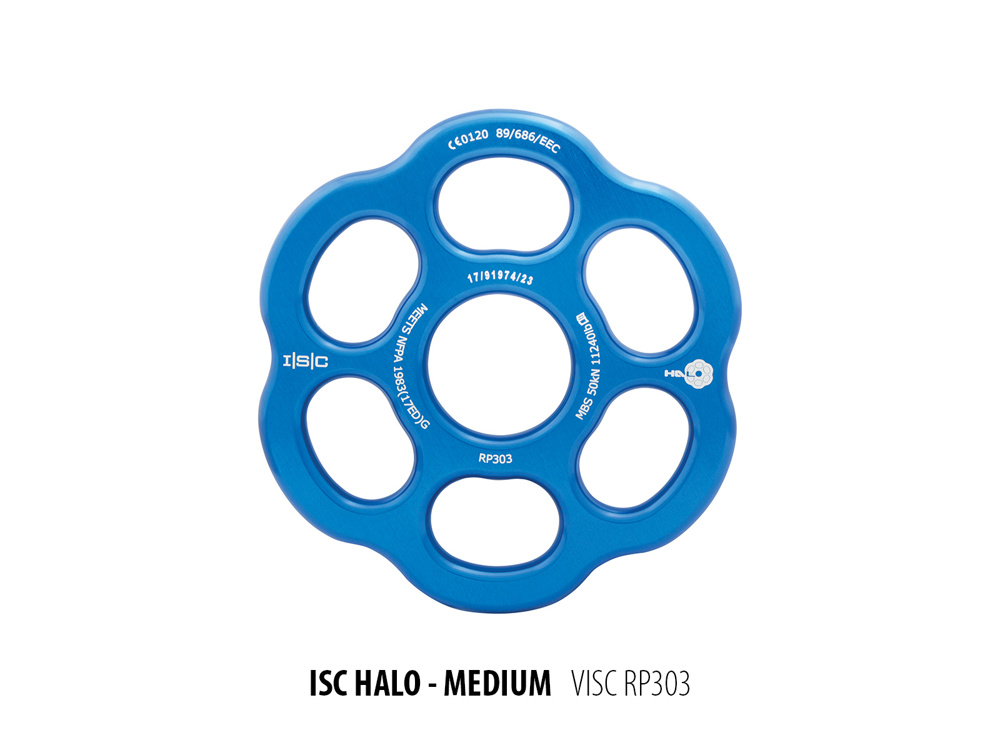

VISC RP303 | Medium - 144mm dia. | Blue |

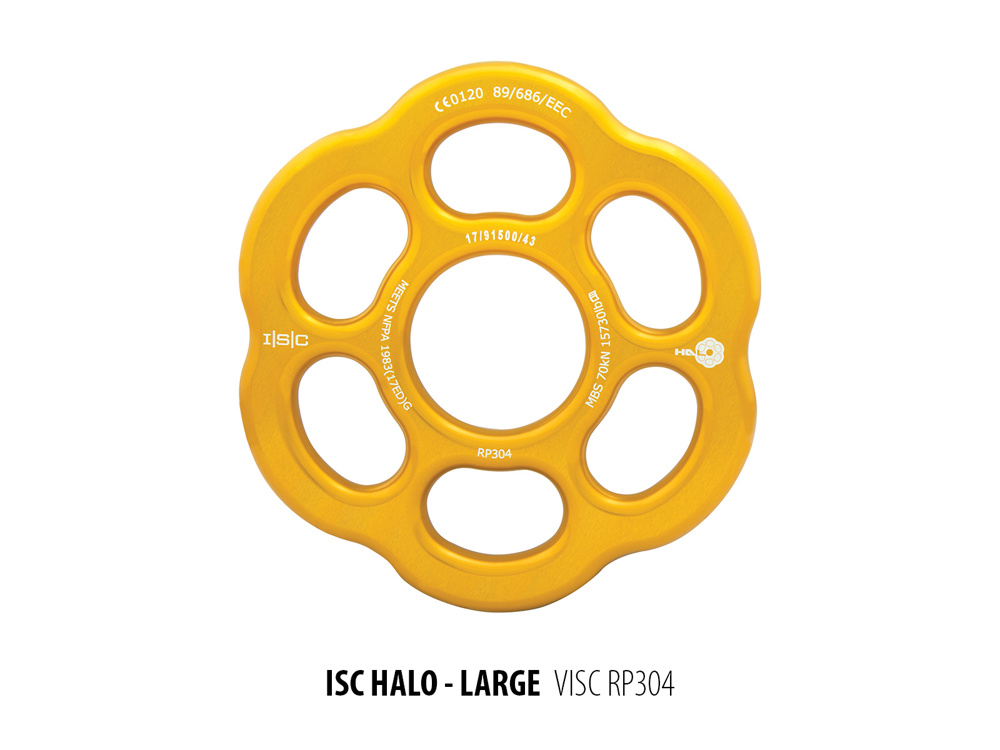

VISC RP304 | Large - 165 mm dia. | Yellow |
Specifications |
SMALL |
MEDIUM |
LARGE |
---|---|---|---|
Diameter |
115 mm |
144 mm |
165 mm |
Centre Hole Diameter | 29 mm | 39 mm | 52 mm |
External Hole | 27 x 20 mm | 36 x 24 mm | 39 x 25 mm |
Break Load | 40kN | 50kN | 70kN |
Weight | 118 g | 221 g | 377 g |
