Product Name: NATO Litter Arms
Ferno Product Code: FMS-643*

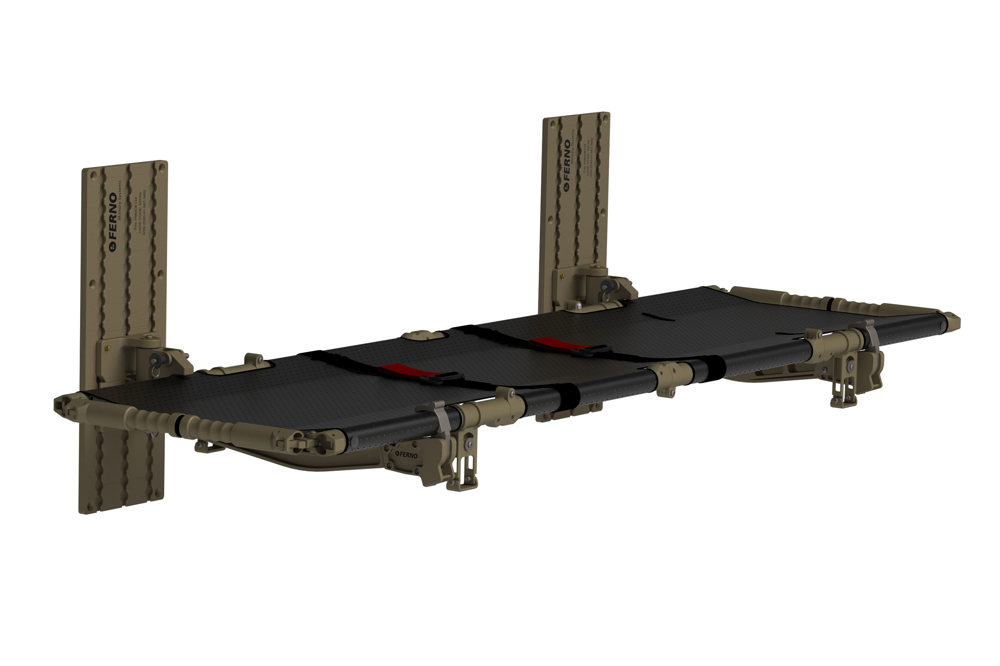

The NATO Litter Arms provide a strong, stable and lightweight platform for any NATO style litter in any military vehicle, from SXS TO MRAPs.
NATO Litter Arms simplify evacuation of litter casualties and eliminates many of the challenges of tactical vehicle evacuation. They are extremely lightweight yet load-tested to hold one critical casualty and exceed the U.S. army cross country mobility load requirements.

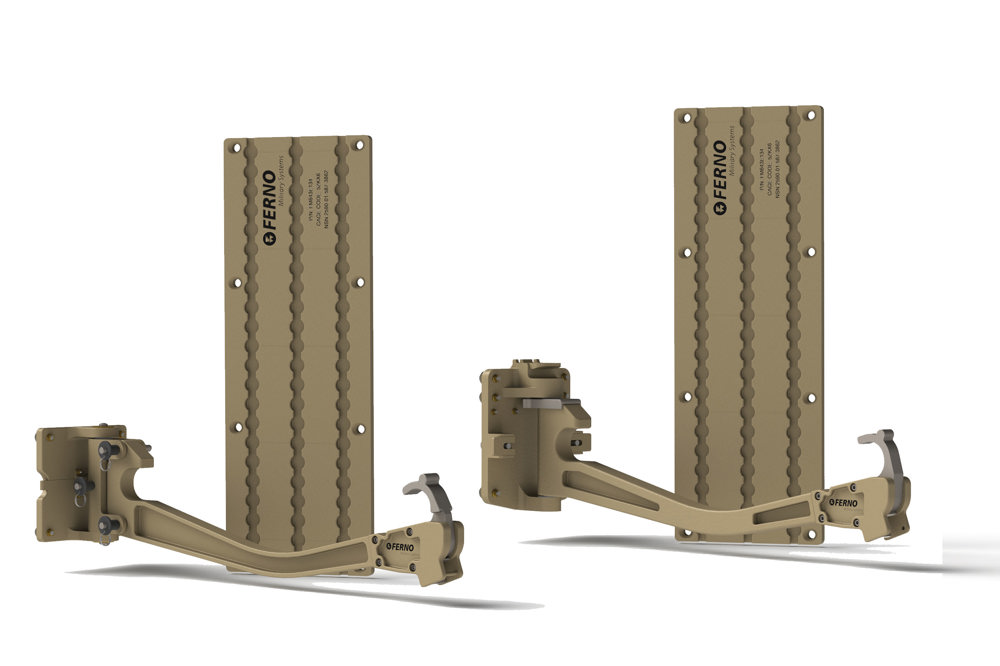

Available in lightweight 10G or robust 20G options, both variations offer
180° of sideward rotation for storage or can be removed from the wall while the 10 G arm can also be stored vertically.
Each arm has a built in ratchet latch with one hand capture and release that will adjust for variations in litter width. Standard fixed position, adjustable position, or custom wall plates and mounting solutions are available for your specific needs.
Offered with an anodised finish or interior / exterior CARC
paint.
Code |
Description |
---|---|
FMS-643A200 |
10G Litter Arm with Pivot Housing |

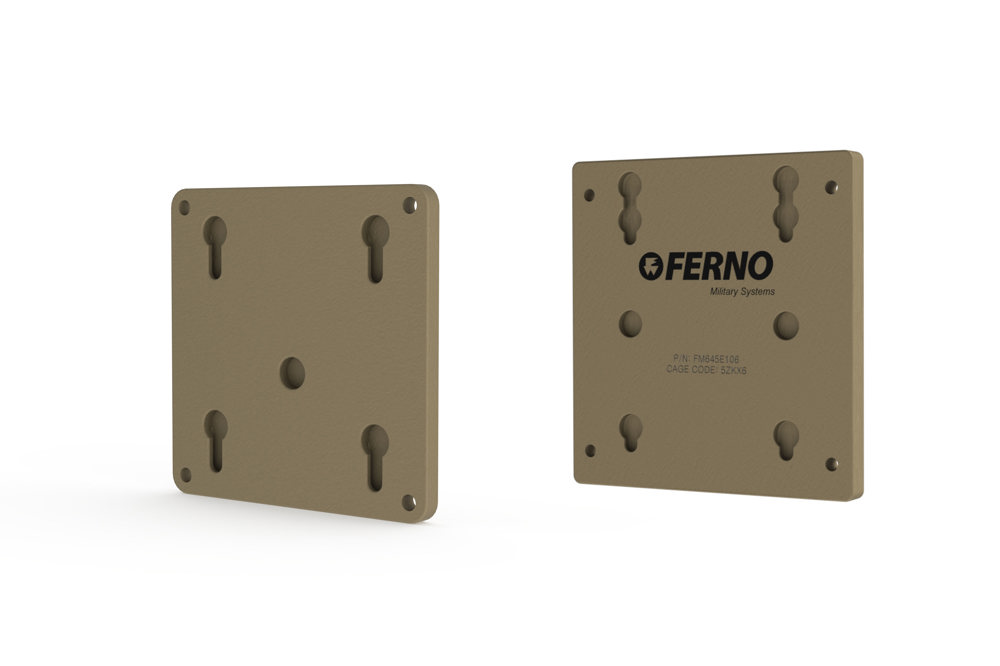

FMS-643E130 | 10G Fixed Position Plate 203 x 203 mm |
FMS-643E134 | 10G & 20G Ferno Track Base Plate 570 x 203 mm |
FMS-644A100 | 20G Litter Arm with Pivot Housing |
FMS-645E106 | 20G Fixed Position Plate 203 x 203 mm |
