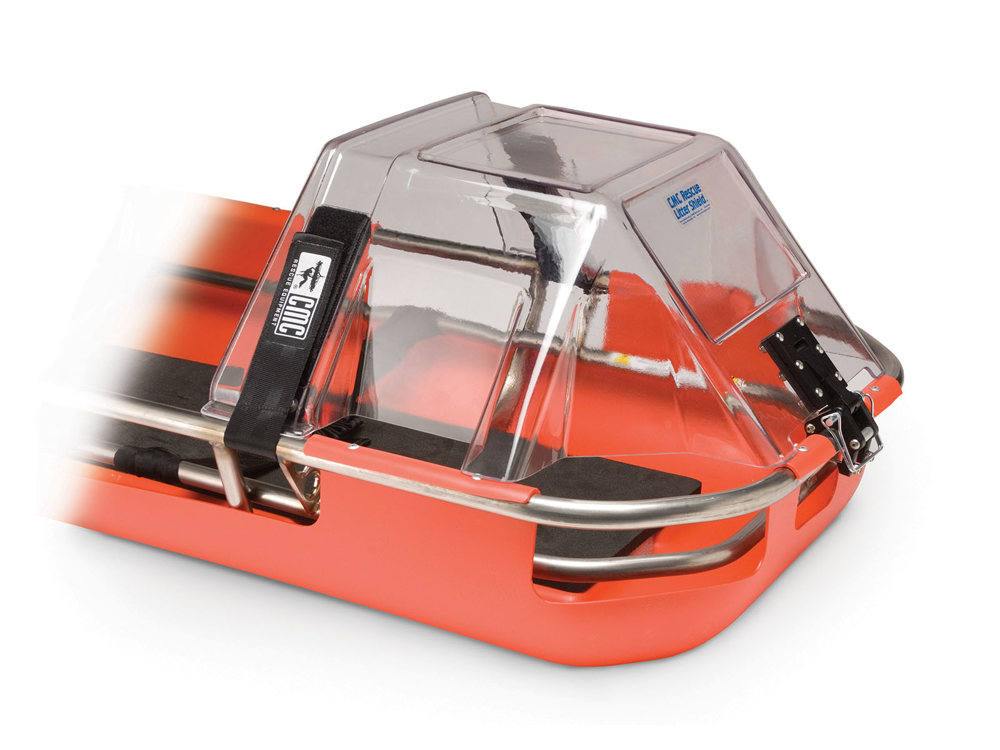

Product Name: CMC Rescue Original Litter Shield
Ferno Product Code: CMC7400*
Protect your patient from further trauma during stretcher evacuations and carry outs.
The shield provides the patient with protection from falling rocks and debris, inclement weather and scrub without compromising access to and visibility of the patient’s head. Moulded of thick Lexan, the Litter Shield offers impact resistance with the clarity and weather-ability of glass.
The CMC Original Litter Shield attaches to a mount on the stretcher rail that allows the shield to pivot and nest on top of the stretcher side rails. A quick release pin allows the shield to be completely removed if necessary.
Each shield requires a railing clamp that must be ordered separately. Details are provided in 'Specifications' tab.
Code |
Description |
Compatible Litter | Size | Weight |
---|---|---|---|---|
CMC740000 |
Litter Shield, Original |
1400 g | ||
CMC740011 | Railing Clamp | Traverse Gazelle Series | 19 mm | 77 g |
CMC740012-K ** | Railing Clamp | Ferno 71 Series | 35 mm | 85 g |
CMC740016 | Railing Clamp | Traverse Titan Series | 25 mm | 68 g |
CMC740017 | Railing Clamp | Traverse Advantage & Spartan Series | 22 mm | 70 g |
CMC740015 | Pin, Litter Shield Replacement | 60 g |
** CMC740012-K Litter Guard Railing Clamp Kit FITTING INSTRUCTIONS
