                Product Name: iN∫X Integrated Patient Transport System

                    Ferno Product Code: FWEINX
The iN∫X Integrated Patient Transport & Loading System is the only system proven to effectively eliminate lifting from patient transport both at the back of the ambulance and on-scene.

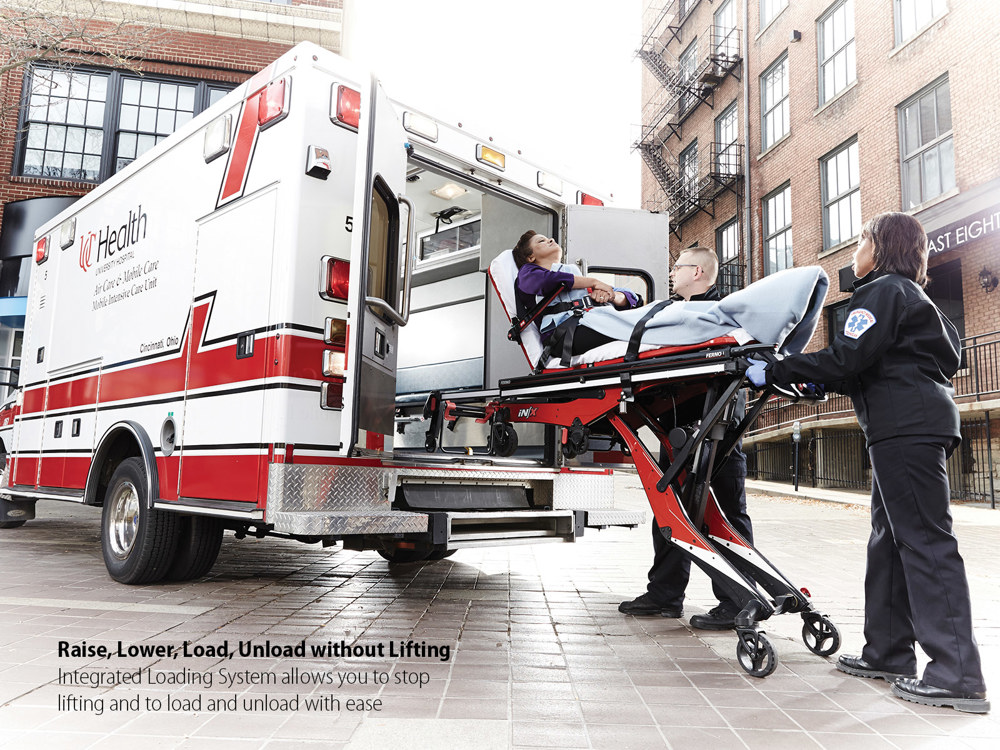

Raise, lower, load, unload without lifting - Integrated Loading System allows you to stop lifting and to load and unload with ease.

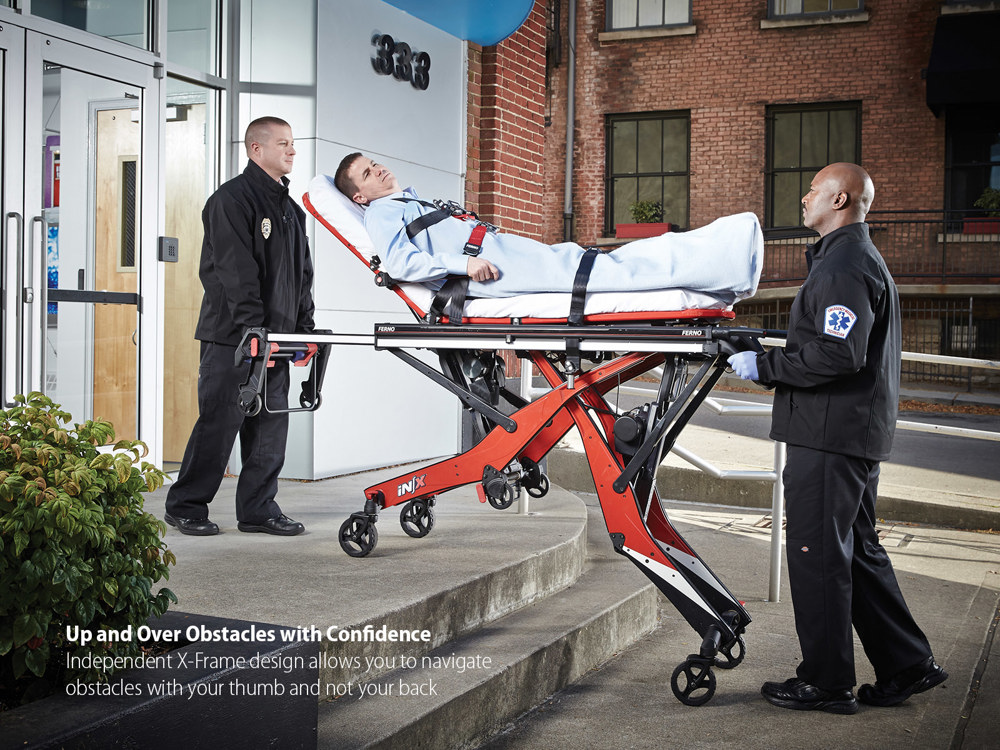

- Up and over obstacles with confidence - Independent X-Frame Design allows you to navigate obstacles with your thumb and not your back.
- Light and lead the way - Integrated lighting system with continuous and flashing modes allows you to see and be seen in dark and hazardous conditions.

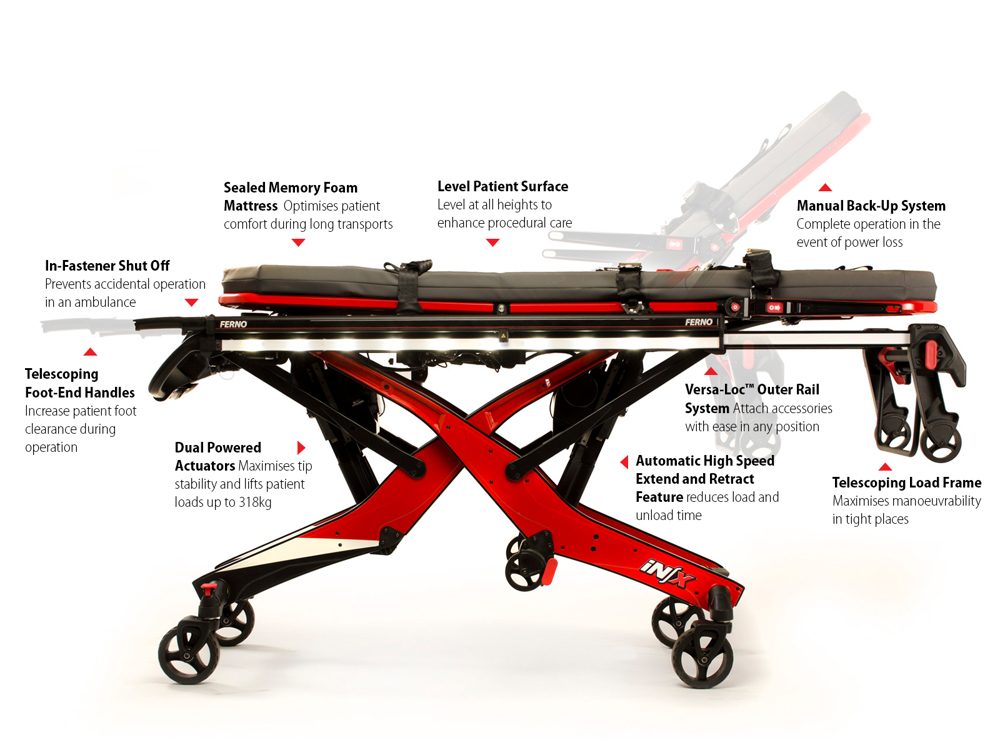

- Dual Powered Actuators - Maximize tip stability and lift patient loads up to 700lbs
- Integrated Charging System - Eliminate battery management
- Programmable Load Height - Adjusts to match your ambulance floor height

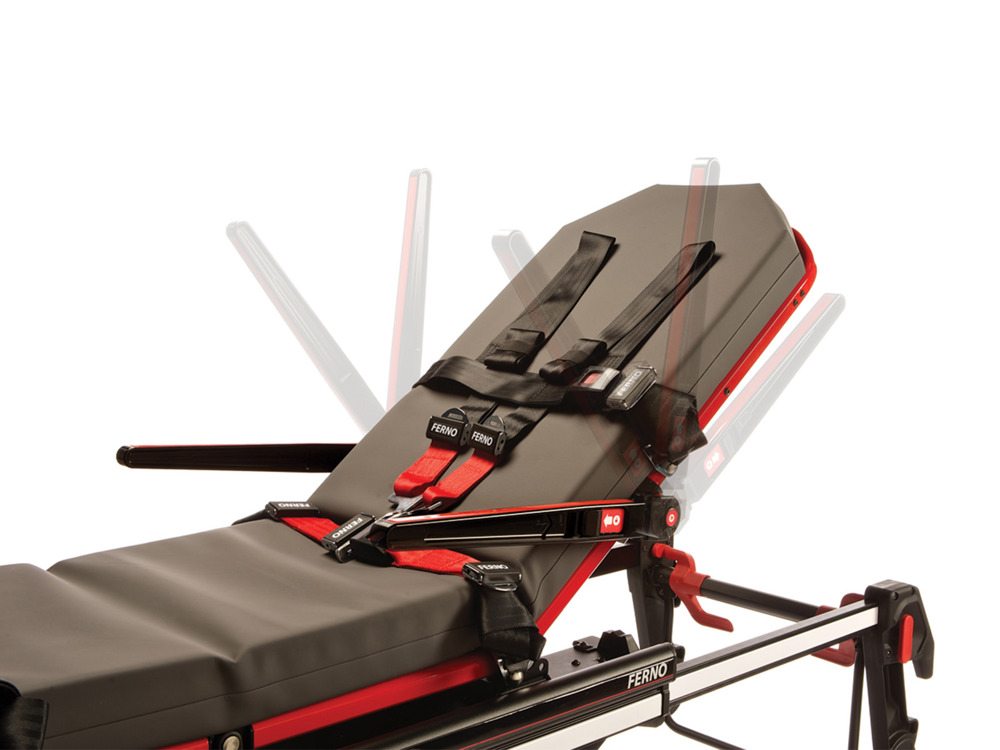

- Level Patient Surface - Level at all heights to enhance procedural care
- Universal Accessory Rail - Attach accessories in any position
- Numerous accessories available
| LENGTH | WIDTH | HEIGHT* | MAX LOAD | LOAD   | WEIGHT | POWER |
|---|---|---|---|---|---|---|
| 1595 - 2057mm | 609 mm | 335 - 1245mm | 915mm | 318kg | 92 kg | 36 Volt DC |
