Product Name: Ferno Viper Stretcher and Loading System
Ferno Product Code: FUK3000239
The Ferno Viper is a cost-effective, powered stretcher with a 320 kg lift and lower capacity. The corresponding Viper Loading System (VLS) is designed to load the stretcher into the ambulance in a variety of environments. The combined Viper Stretcher and Loading System is simple to use and maintain.

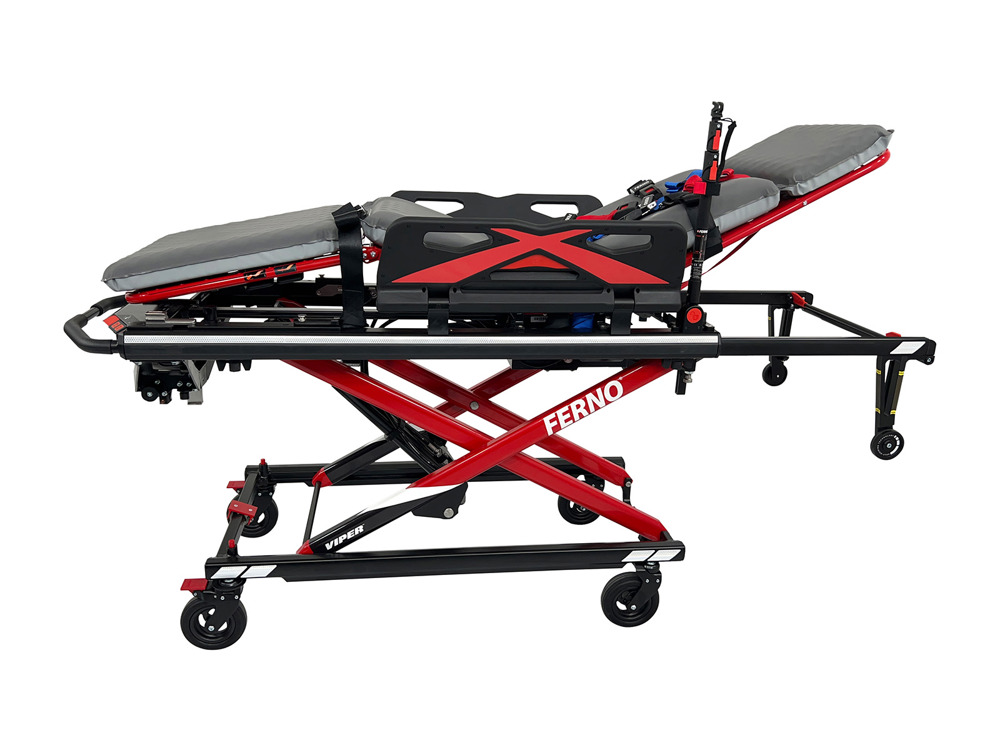

Viper Stretcher

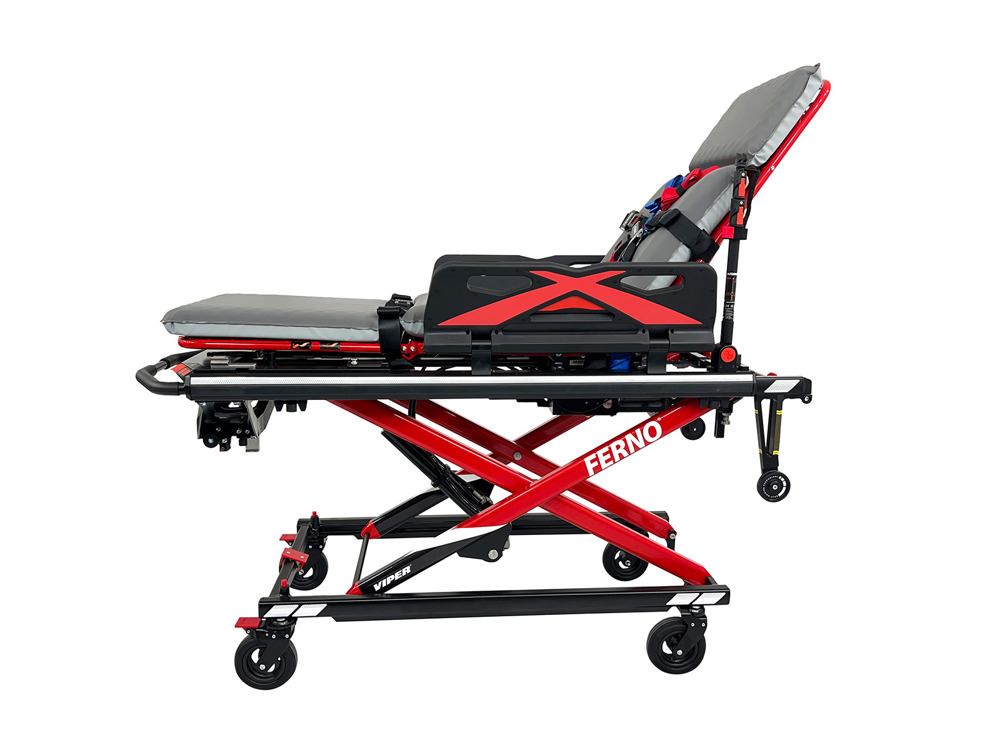

The stretcher is powered by the latest Lithium-ion battery technology which automatically charges when the Viper is locked into the loading system. The full featured stretcher incorporates multi-position backrest and leg positioning capabilities, rubberised wheels for better handling, SX surface extenders and can be monitored via the Viper app for smartphones and tablets.

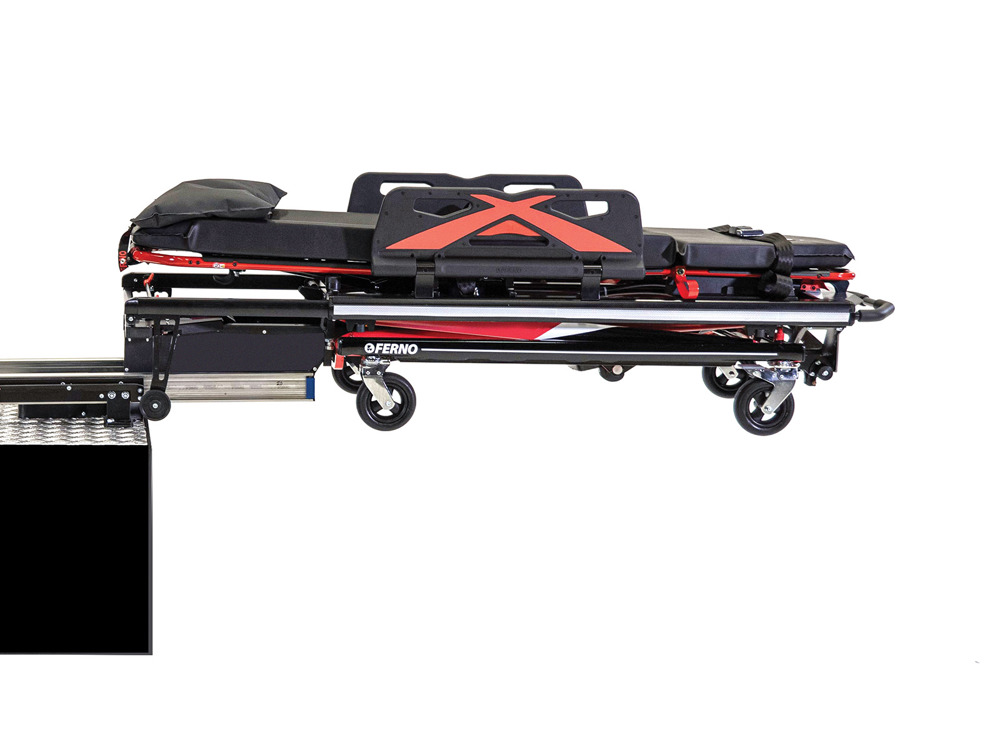

Viper Loading System (VLS)
The VLS is a mechanical loading and fastening system which utilises a mechanical loading arm to safely load the Viper into and out of the ambulance. The system is designed to minimise the manual handling effort required. The loader's compact design makes it compatible with shorter chassis ambulances and is one of the lightest loading systems available.

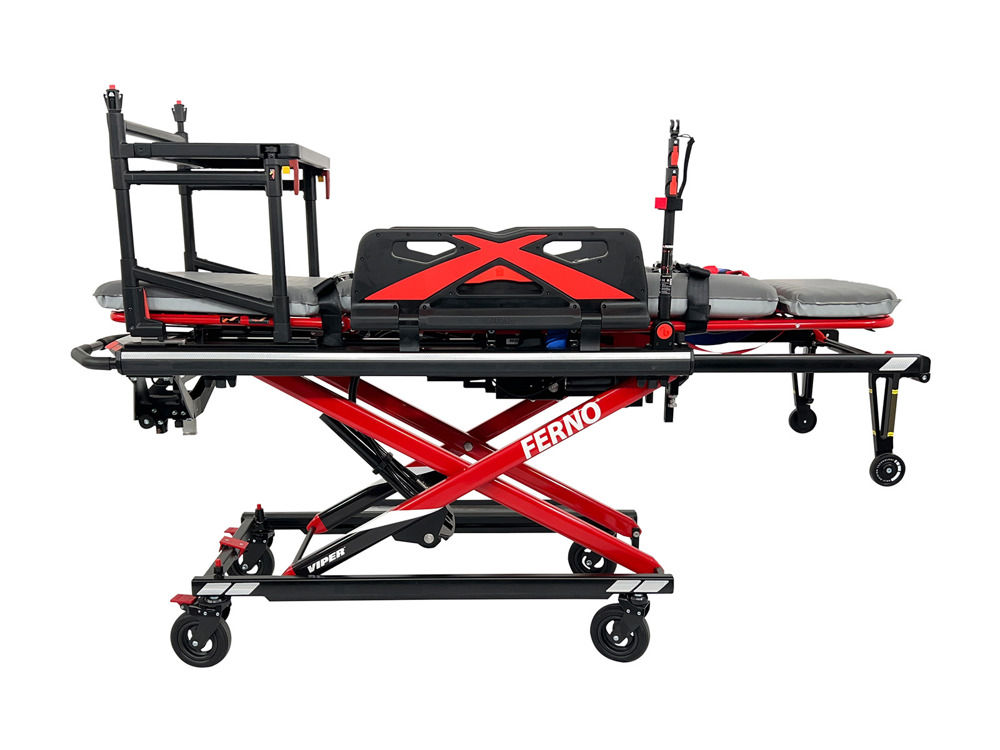

Accessories
Accessory | Code |
---|---|
PacRac+ Instrument Table — Viper | FWEPR+V |
PacRac+ Adaptor Kit | 90-0543 |
3-Stage IV Pole — Viper | LAIV-3SV |
Sto-Net Storage Net for head end | 082-2543 |
Certified to AS/NZS 4535:1999
Viper Stretcher Specifications | |
---|---|
Length — standard | 200 cm |
Length — minimum | 163 cm |
Width | 60 cm |
Height — highest position | 133 cm |
Height — lowest position | 38 cm |
Loading height | 95 cm |
Weight* | 82 kg |
Wheels — diameter / width | 15 cm / 5 cm |
Backrest articulation | 0º — 90º |
Shock position | 0º — 30º |
Working Load Limit | 320 kg |
Battery capacity | 5 Ah |
- *Stretcher weight includes battery pack, without mattress and restraints
Viper Loading System Specifications | |
---|---|
Length | 200 cm |
Width | 57 cm |
Weight | 69 kg |
Maximum Load Capacity | 400 kg |
Recommended Loading Height | 95 cm |
Viper Stretcher and Loading System Data Sheet
