Product Name: ISC Prusik Minding Pulleys
Ferno Product Code: VISC RP06*
ISC Prusik Minding Pulleys are designed for heavy duty rescue, rigging, and hauling systems.
The full range consists of sizes small, medium, and large.
Each size is
available in a single or double pulley configuration, in aluminium or stainless steel.

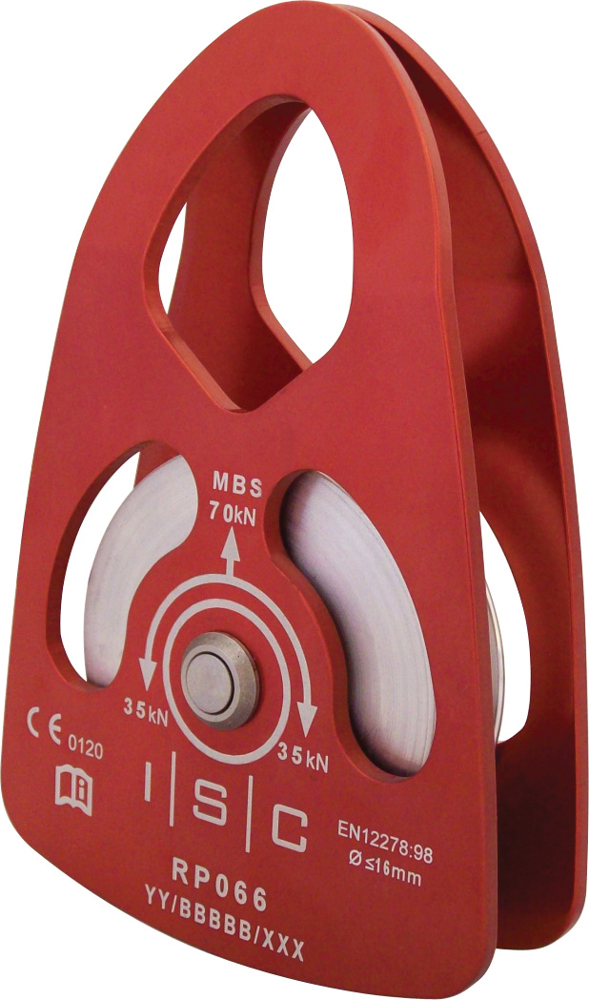

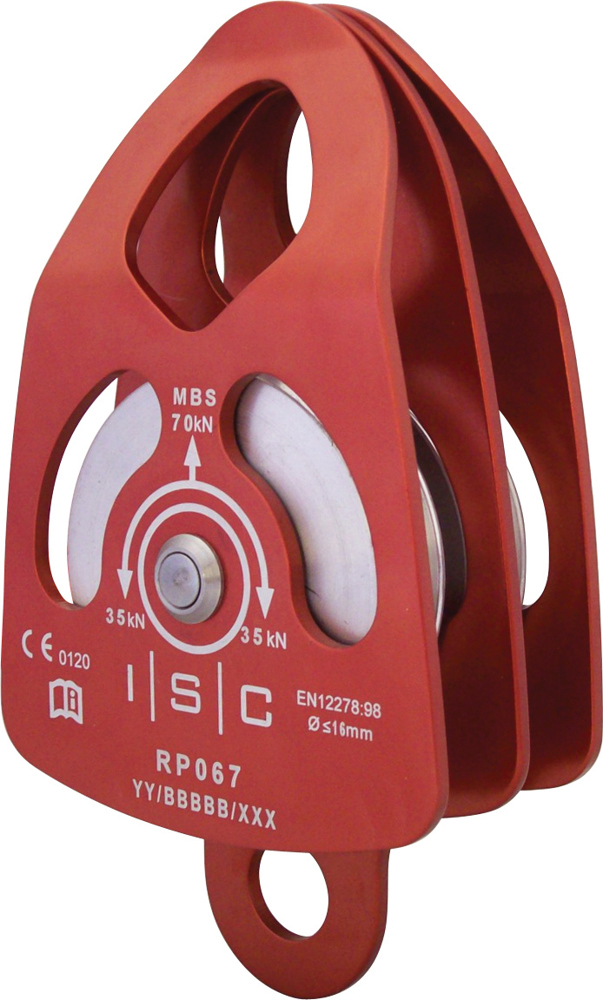

Alloy Plate with Alloy Wheel
CODE |
DESCRIPTION |
MBS |
ROPE |
SHEAVE |
WEIGHT |
---|---|---|---|---|---|
VISC RP060A1 |
Small Single |
40kN |
13 mm |
50 mm |
200 g |
VISC RP061A1 | Small Double Becket | 40kN | 13 mm | 50 mm | 340 g |
VISC RP063A1 | Medium Single | 50kN | 13 mm | 62 mm | 280 g |
VISC RP065A1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 300 g |
VISC RP064A1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 500 g |
VISC RP066A1 | Large Single | 70kN | 16 mm | 75 mm | 440 g |
VISC RP067A1 | Large Double Becket | 70kN | 16 mm | 75 mm | 760 g |

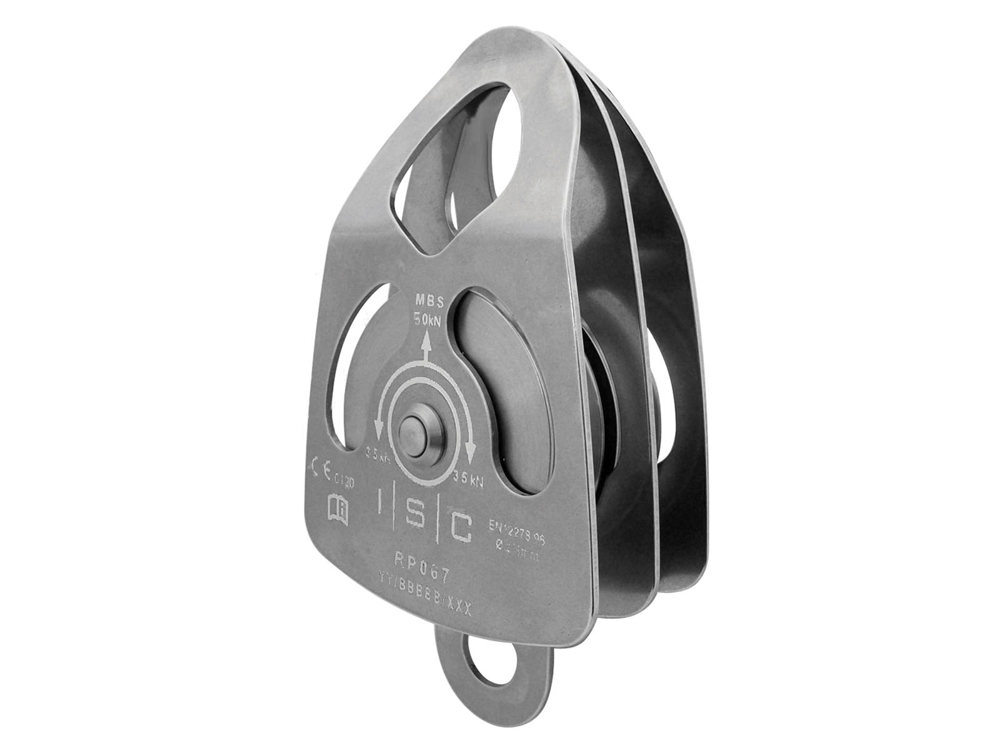

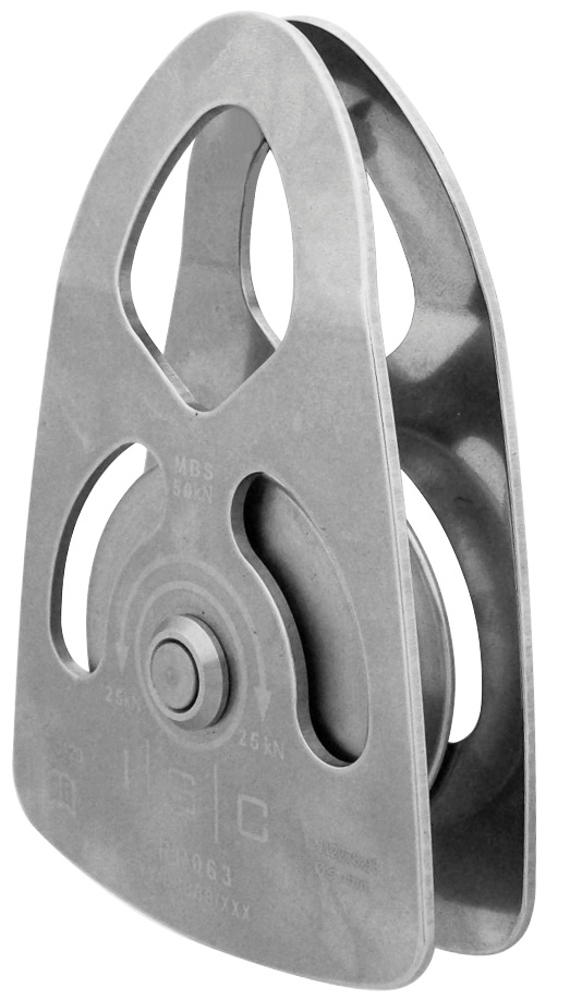

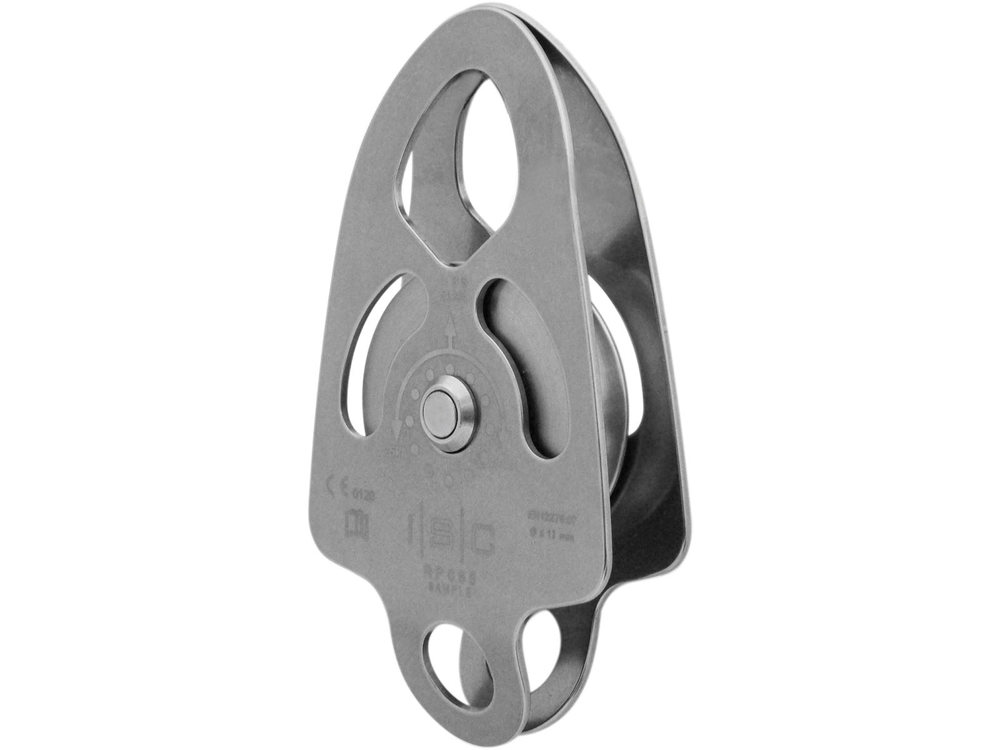

Stainless Steel with Stainless Wheel
CODE |
DESCRIPTION |
MBS |
ROPE |
SHEAVE |
WEIGHT |
---|---|---|---|---|---|
VISC RP060D1 |
Small Single |
40kN |
13 mm |
50 mm |
398 g |
VISC RP061D1 | Small Double Becket | 40kN | 13 mm | 50 mm | 674 g |
VISC RP063D1 | Medum Single | 50kN | 13 mm | 62 mm | 584 g |
VISC RP065D1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 584 g |
VISC RP064D1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 1036 g |
VISC RP066D1 | Large Single | 50kN | 16 mm | 75 mm | 896 g |
VISC RP067D1 | Large Double Becket | 50kN | 16 mm | 75 mm | 1626 g |
- CE EN12278-2007, NFPA 1983
