Product Name: Anchor Plates
Ferno Product Code: VCT L6370303, VCT L6370503, VISC RP320A

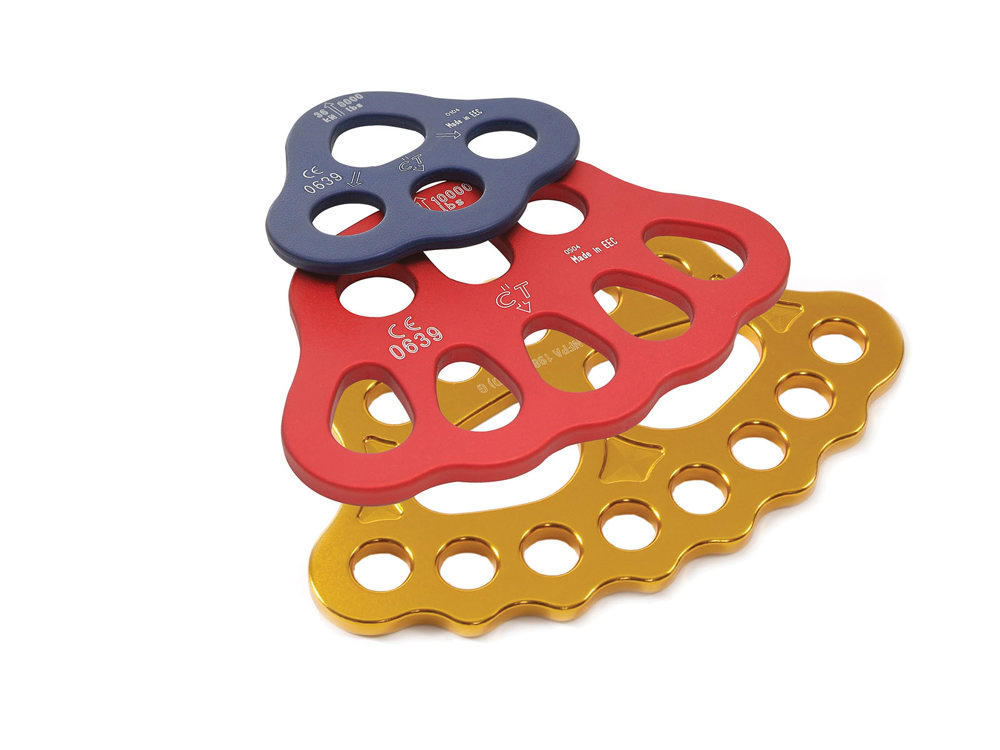

Anchor Plates allow you to create and organise your anchor systems safely. These Anchor Plates are made from high grade aluminium alloy.
Anchor Plates are available in four, eight or fifteen hole options.
Codes:

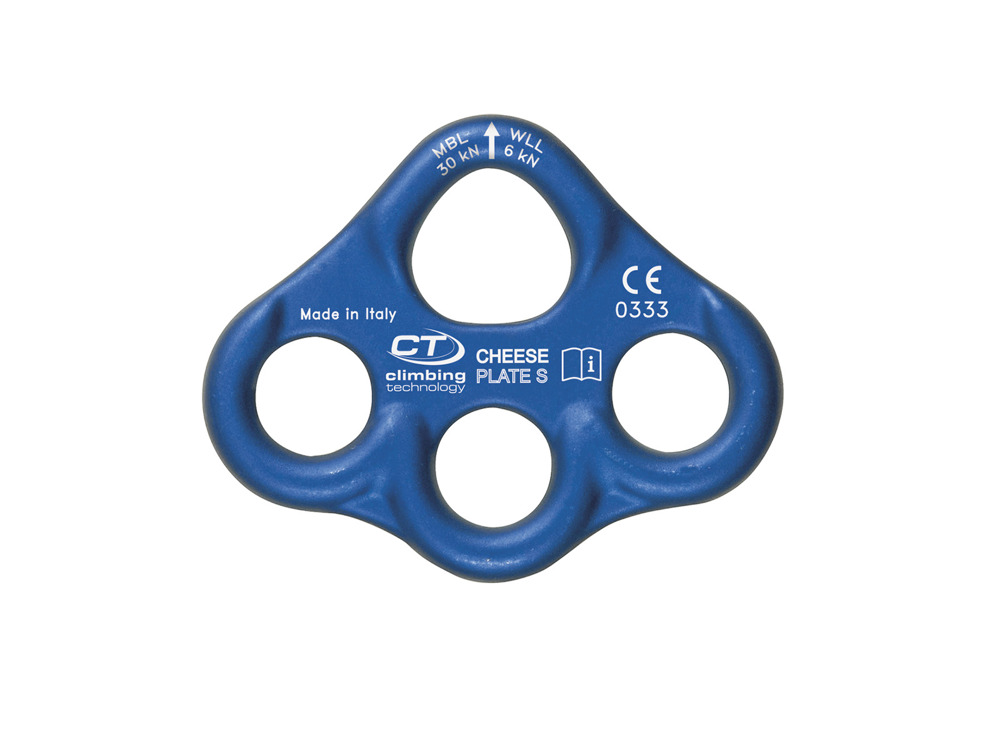

VCT L6370303 - 4 holes

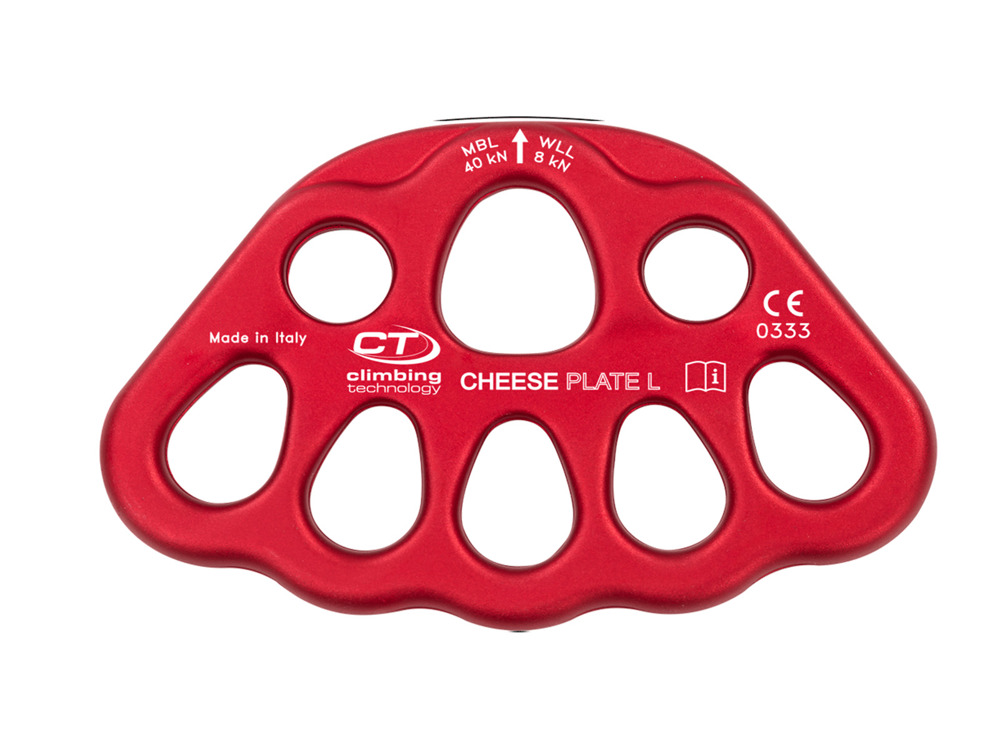

VCT L6370503 - 8 holes
VISC RP320A - 15 holes
|
MODEL |
CODE |
DIMENSIONS |
WEIGHT |
BREAKLOAD |
HOLE
DIAMETER |
WLL |
|---|---|---|---|---|---|---|
|
4 Hole |
VCT L6370303 |
103 x 81 mm |
75 g |
30 kN |
19.5 mm | 6 kN |
| 8 Hole | VCT L6370503 | 149 x 98 mm | 160 g | 40 kN | 19.5 mm | 8 kN |
| 15 Hole | VISC RP320A | 249 x 150 mm | 471 g | 45 kN | 20 mm | 450 kg |
